Where can Matrix cladding be used?

Matrix is suited to contemporary new homes, upper and ground-floor extensions, facade volumes, window surrounds, fascia zones and other exterior areas where a clean panelised look is specified.

Why is set-out important for Matrix cladding?

The expressed joints are a visible part of the design. Panel sizes, openings, corners, edges and changes of plane need to be coordinated before installation so the finished geometry reads intentionally.

Can I send plans for a Matrix cladding quote?

Yes. Send the plans, elevations, material schedule, site location, timing and any available photos so CLADSMAN can review the installation scope.

James Hardie Matrix installation / Melbourne

James Hardie Matrix Cladding Installation Melbourne

Expressed-joint fibre cement panels, set out for crisp geometry and clean architectural junctions.

Request a Matrix Quote Call 0435 545 777

Scroll to align the panels

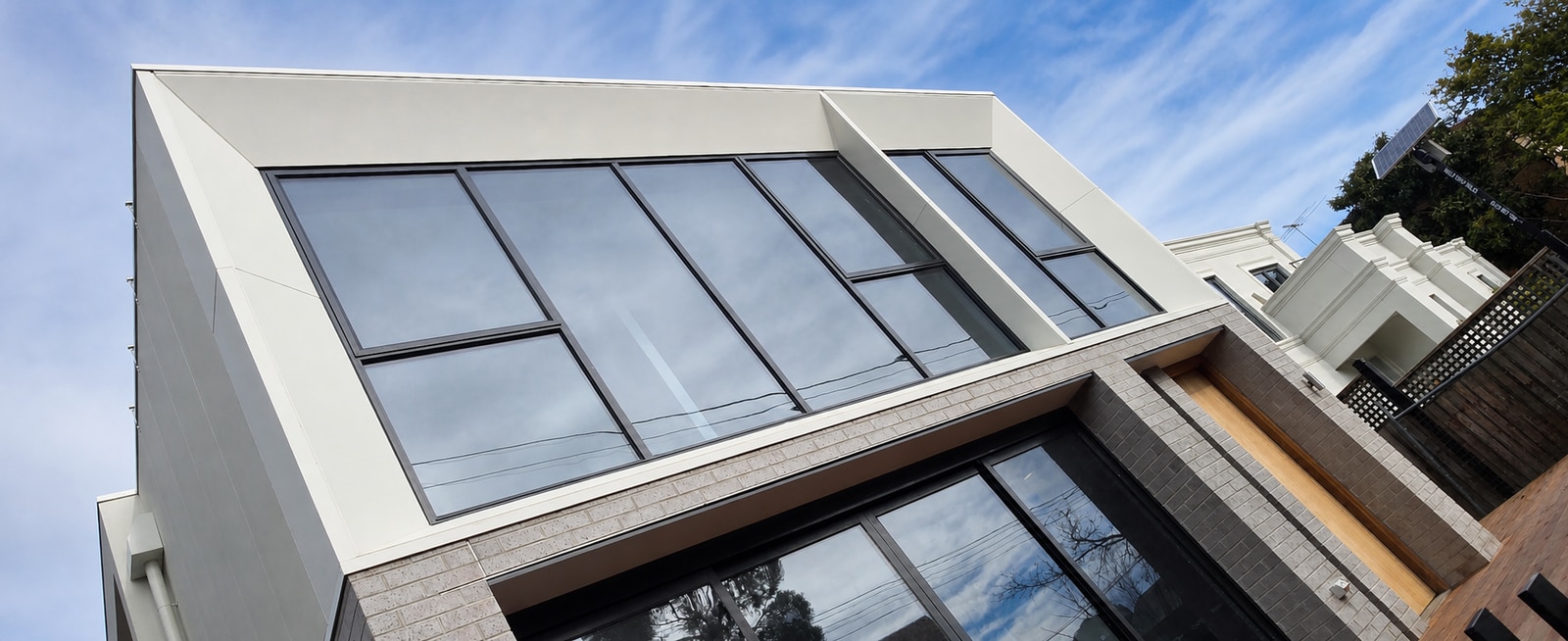

James Hardie Matrix expressed-panel cladding framing large black windows on a completed Melbourne facade

Real CLADSMAN project / Matrix cladding / Melbourne

01 / The material

Matrix is designed around the joint.

James Hardie Matrix™ Cladding is a smooth, pre-primed fibre cement system with a precise 10 mm expressed joint between panels. Those joints can create square, horizontal, vertical and brick-pattern layouts across a facade.

The joint grid is visible architecture, so the finish begins with set-out. CLADSMAN coordinates panel sizes, openings, corners, fascia, soffits and material changes so the completed elevation feels composed rather than divided into leftover pieces.

View official Matrix product information

Material

Fibre cement

Smooth exterior cladding panels supplied pre-primed for the specified paint system.

Joint expression

10 mm joints

A deliberate shadow-line grid that makes panel alignment part of the design.

Layout

Geometric freedom

Panel sizes support square, vertical, horizontal and brick-pattern compositions.

Finish

Clean painted planes

A smooth surface lets colour, shadow and the expressed-joint pattern define the facade.

02 / Real project proof

Measured panels.
Sharp geometry.

These are completed CLADSMAN installations. The close views show the parts that define Matrix work: expressed-joint alignment, balanced panel margins, crisp window reveals and clean changes of plane.

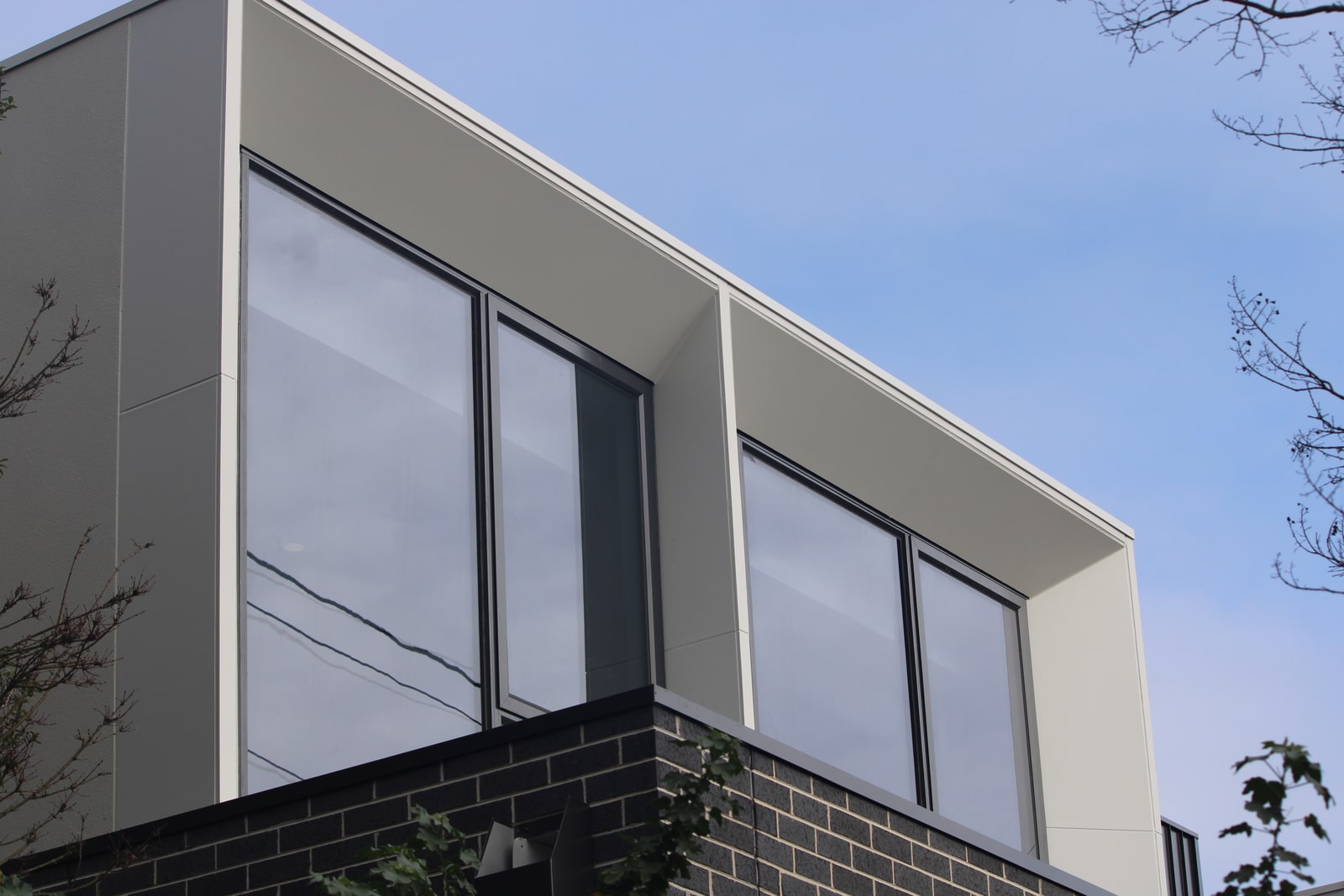

James Hardie Matrix cladding around tall windows with clean expressed joints and black brick below — **Window-framed Matrix elevation**Panel joints and opening margins aligned across a long upper-storey facade.

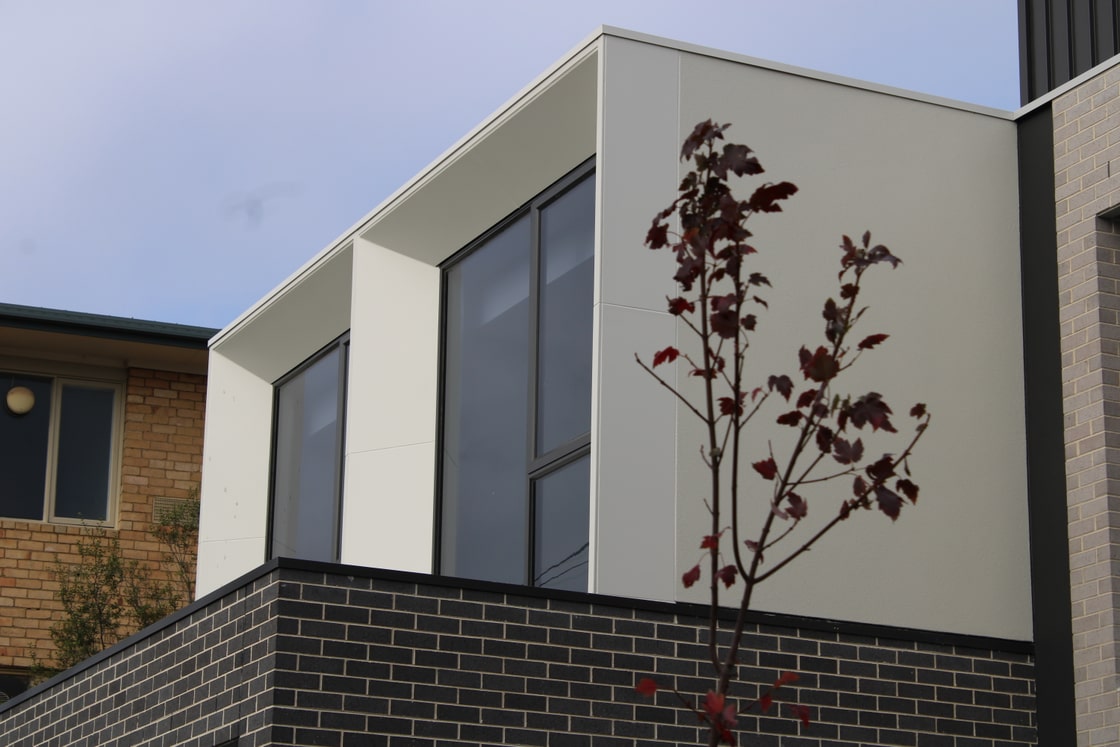

James Hardie Matrix panel cladding forming crisp corners and window surrounds — **Corner and reveal set-out**The expressed joints terminate deliberately around openings and changes of plane.

The CLADSMAN approach
We treat the joint grid as part of the architecture, not a pattern added after the wall is built.

03 / Installation matters

The grid must feel intentional.

Matrix rewards planning. Our installation scope follows the current project documentation and product requirements, then resolves the real openings, corners, junctions and access conditions on site.

Panel set-out

Panel sizes and joint positions are coordinated against the elevation so major edges, openings and returns share a clear visual logic.

Expressed-joint accuracy

The 10 mm joint is kept consistent through horizontal and vertical runs so the grid reads crisp in changing light.

Openings and returns

Window surrounds, fascia, soffits and corners are detailed as part of the same panel composition, with clean margins and controlled edges.

Material interfaces

Transitions into masonry, glazing, aluminium battens and other cladding systems are planned so each material keeps its own clean edge.

04 / Where Matrix works

Panel geometry that defines architectural volumes.

Matrix can turn fascia, upper-storey walls, window surrounds and projecting volumes into one controlled composition. In mixed-material facades, its smooth planes and expressed joints can sit beside masonry, glazing or aluminium battens without losing clarity.

Contemporary new-home facades
Upper and ground-floor extensions
Feature volumes and box forms
Window surrounds and deep reveals
Fascia, returns and selected soffit zones

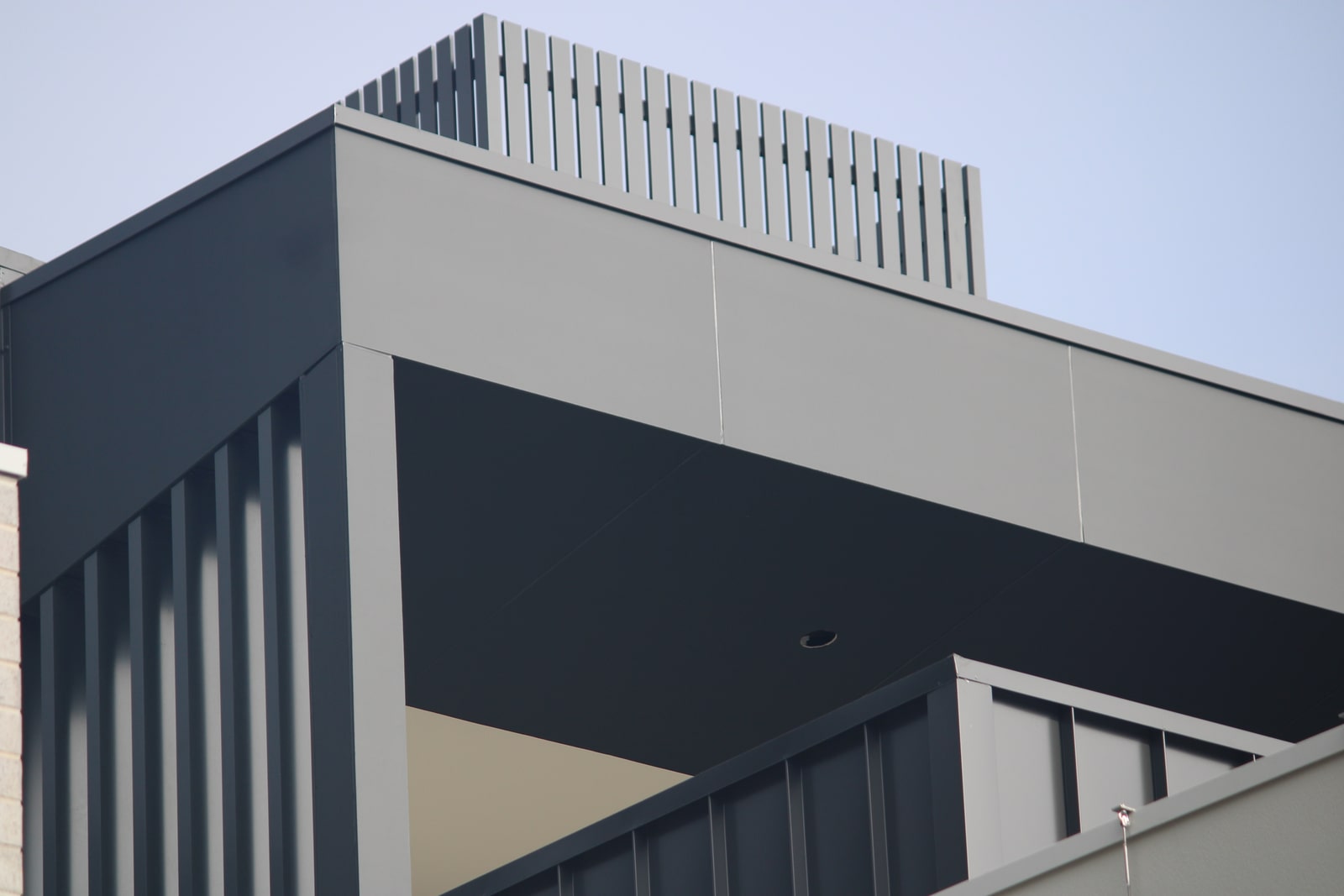

Dark James Hardie Matrix fascia and soffit detailing beside a custom aluminium batten screen — **Matrix fascia / aluminium screen**Dark expressed panels define the projecting volume while the vertical battens add depth and screening.

05 / Project perspectives

Resolved at every edge.

A Matrix facade is read in its junctions as much as its broad planes. These project views show fascia, soffits, returns and interfaces with aluminium screens from the angles people actually see.

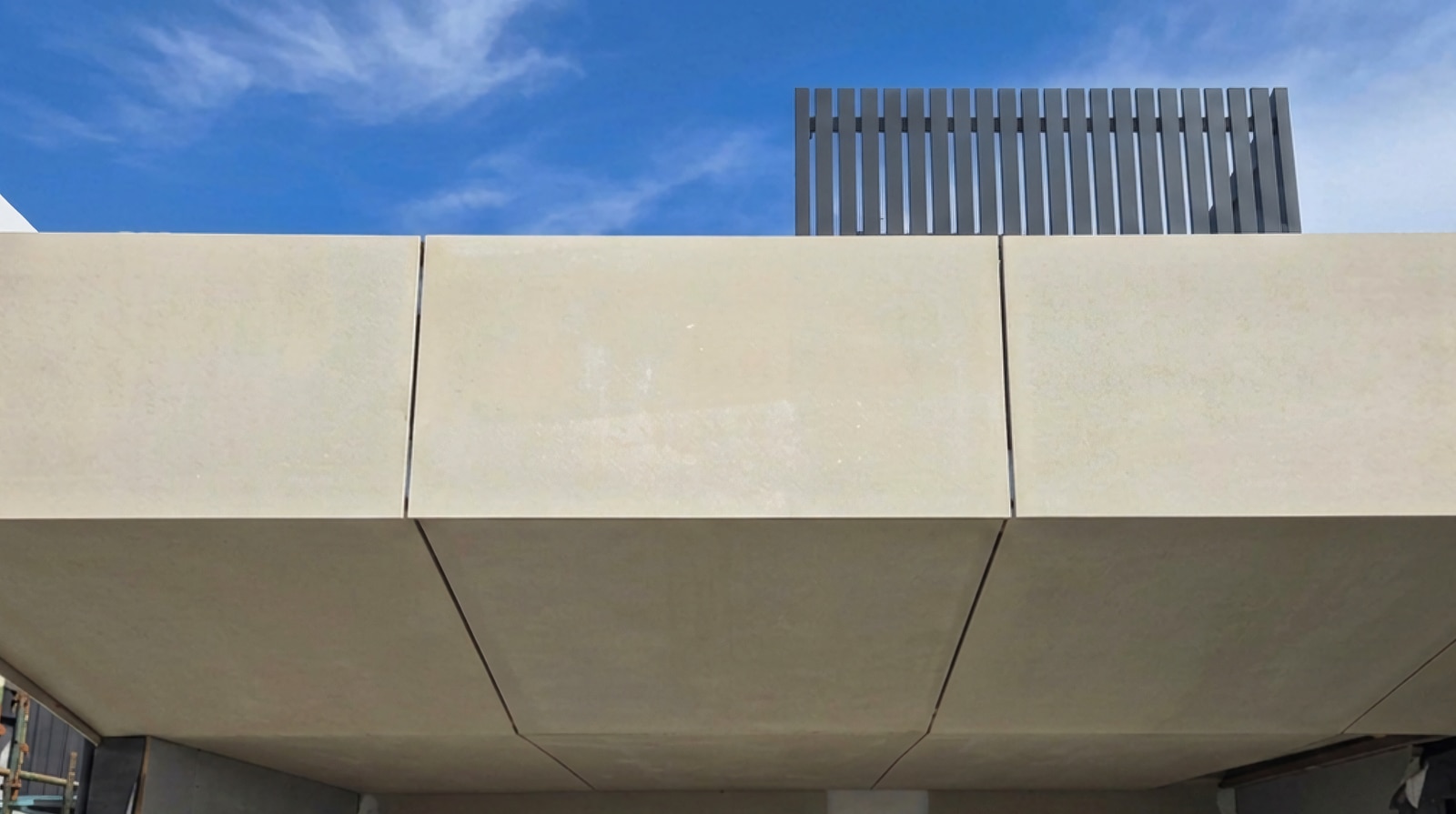

Clean James Hardie Matrix expressed joints aligned across fascia and soffit panels below an aluminium batten screen — 01 / Expressed-joint alignment
Clean joints continue through the return.
The James Hardie Matrix sheet layout carries its measured expressed joints from the fascia into the soffit, creating a crisp panel grid beneath the aluminium batten screen.

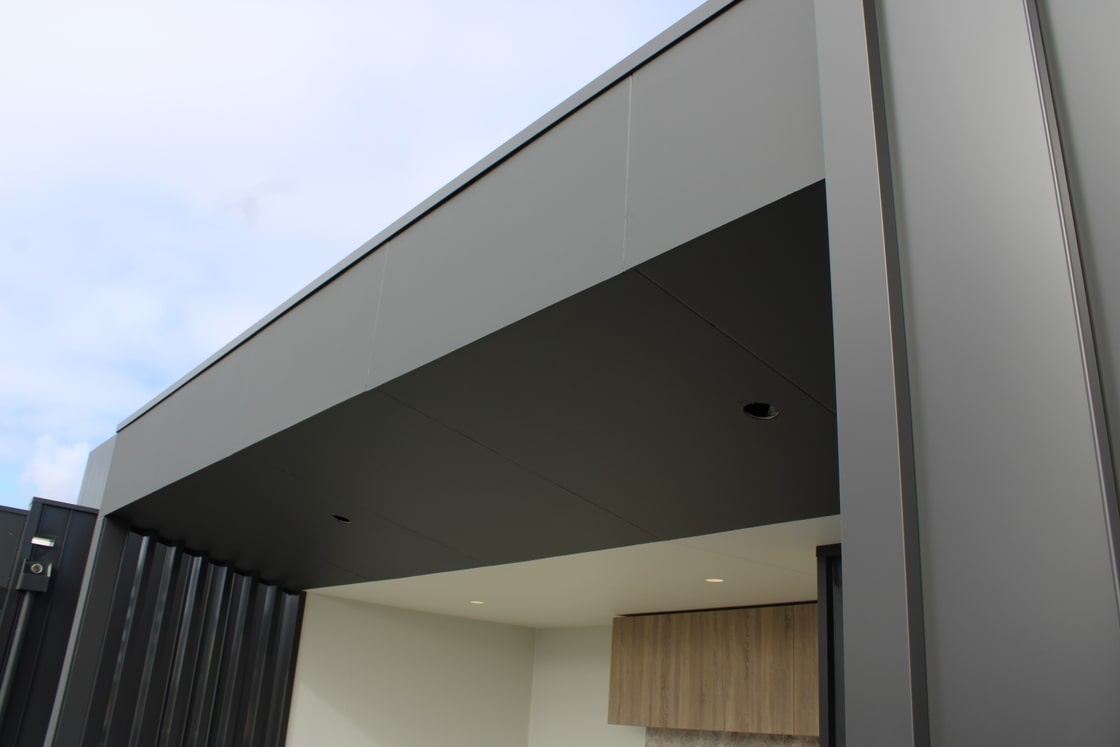

James Hardie Matrix fascia and soffit panels forming a clean entrance return — 02 / Entrance return
One line carried around the volume.
Fascia, return and soffit planes are coordinated so the projecting form reads cleanly from below.

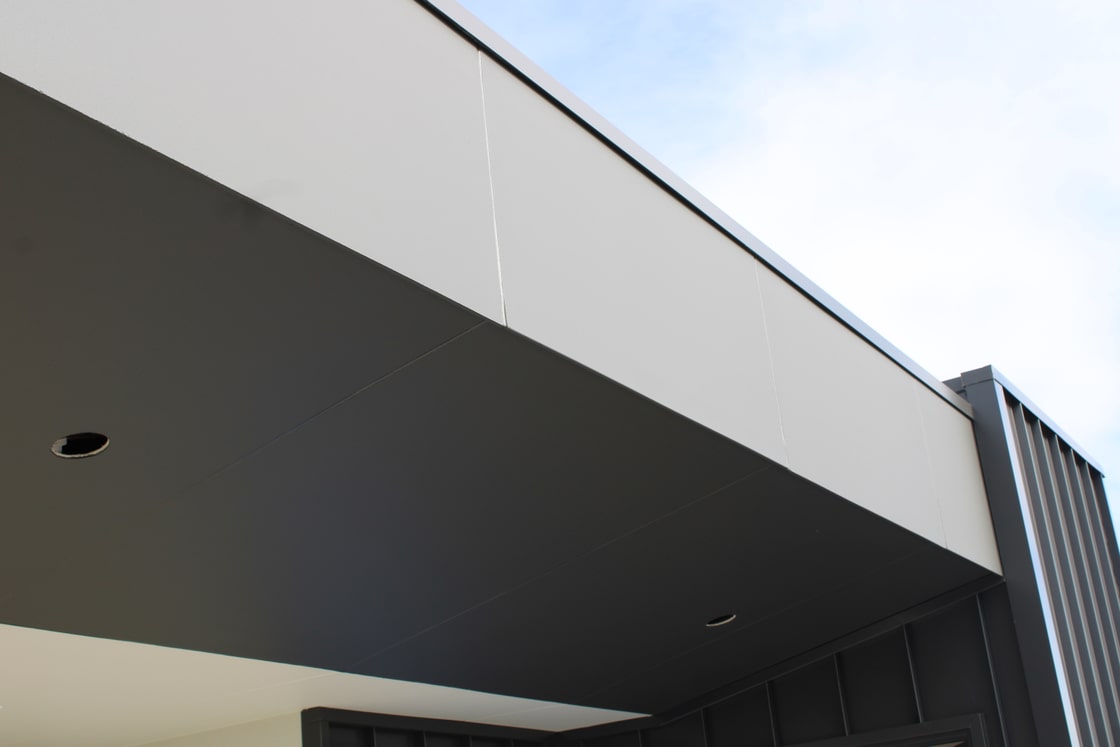

Close view of aligned James Hardie Matrix fascia panels above a dark soffit — 03 / Fascia set-out
Joints placed with purpose.
The panel divisions are balanced across the fascia and continue cleanly into the darker soffit plane below.

06 / Common questions

Planning a Matrix project?

What is James Hardie Matrix cladding?

Matrix is a smooth, pre-primed fibre cement exterior cladding system. Its panels are separated by a precise 10 mm expressed joint, creating a clean architectural panelised look.

What panel layouts can Matrix create?

James Hardie offers panel sizes that can form square, vertical, horizontal and brick-pattern layouts. The final set-out depends on the elevation, framing, openings, chosen panel sizes and current installation requirements.

Where is Matrix cladding commonly used?

Matrix is commonly specified for contemporary new homes, upper or ground-floor extensions, feature volumes, window surrounds and other external areas where a strong geometric panel expression is wanted.

Can CLADSMAN install battens, backing strips and trims?

Depending on the agreed scope, our work can include weather barrier, cavity battens, backing strips, Matrix panels, corners, fascia, soffits, returns, trims and junction detailing. The exact wall build-up must follow the project documentation and current manufacturer requirements.

What should I send for a Matrix installation quote?

Send the project address, plans and elevations, the material schedule, expected timing and current site photos. If the panel pattern has already been designed, include the set-out drawings as well.

07 / Start the conversation

Request a Matrix cladding quote.

Send the plans, site location and what you know so far. We will come back with the next practical step for your installation.
