Design flexibility
Architectural aluminium batten installation / Melbourne
Aluminium Batten Screens Installed With Precision.
Custom facade screens, deep window surrounds and detailed openings, set out one batten at a time.
Scroll to align

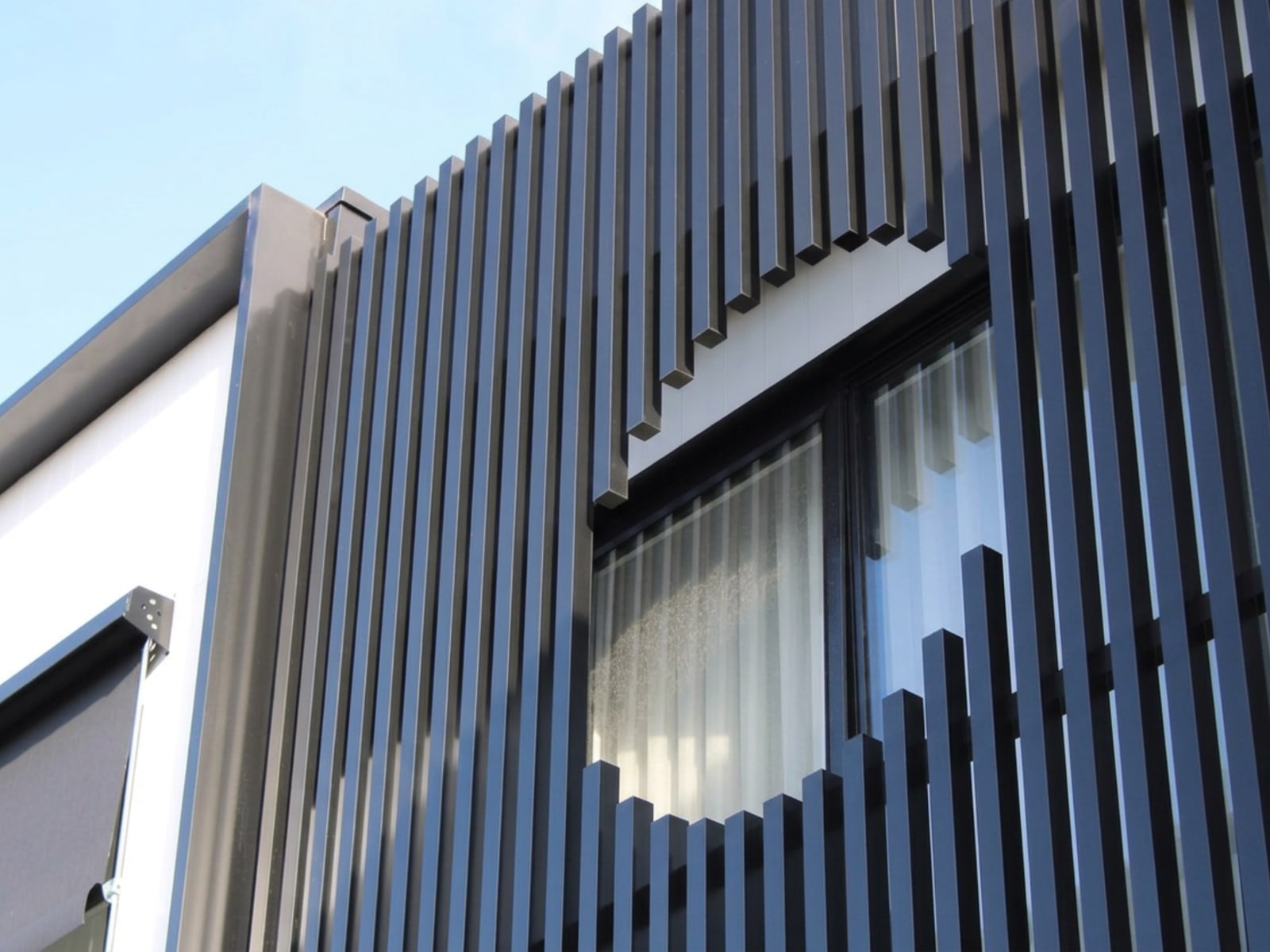

Real CLADSMAN project / Custom circular screen opening / Melbourne
01 / Architectural screening
The spacing creates the architecture.
Aluminium battens add depth, rhythm and controlled visibility to a facade. The quality is read in the repetition: every profile needs to sit straight, every gap needs to remain consistent and every interruption needs to feel intentional.
CLADSMAN installs custom aluminium batten screens for Melbourne homes, builders and architectural projects. We coordinate the nominated profile and support system with the drawings, then resolve the real openings, corners, window lines and facade junctions on site.
Profile selection, fixing design, spans and spacing remain subject to the specified system, engineering and current installation requirements.
Visual control
Measured spacing
Centres are set out to keep the screen balanced across the complete elevation.Custom geometry
Shaped openings
Individual lengths can be coordinated to form a clean opening through the screen.Facade integration
Depth and shadow
Profile depth and spacing create changing light, shadow and privacy through the day.Custom geometry.
Disciplined repetition.

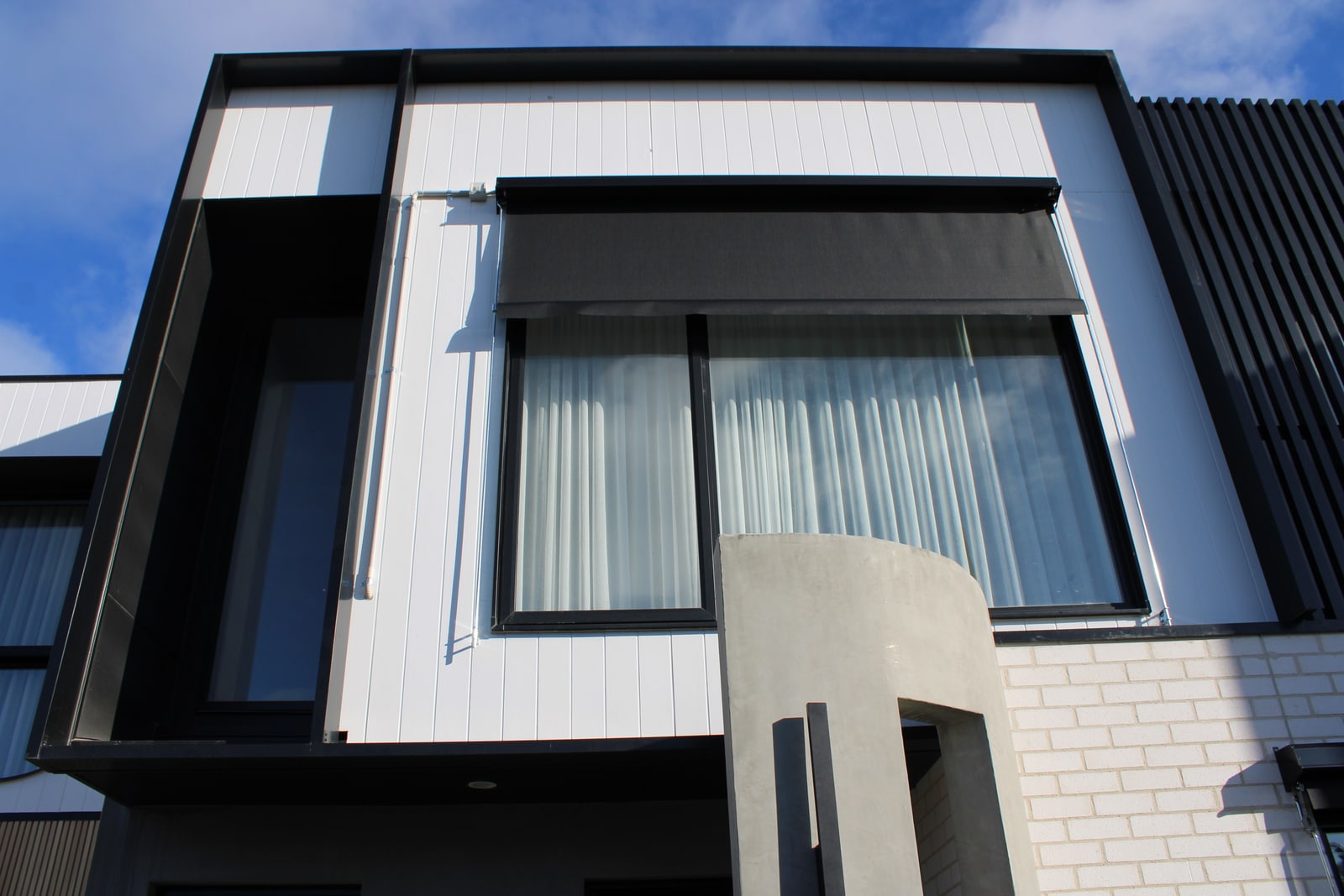

These are real CLADSMAN installations. The circle and deep window frame show two very different challenges: one relies on many accurately stepped batten ends, the other on maintaining clean, substantial border lines around glazing.
The CLADSMAN approachA batten screen is simple only when the set-out behind it has been solved properly.
Every line has a reason.
Premium screening depends on the work that disappears behind the finished elevation: datum lines, supports, fixing locations, clearances and the sequence around each opening.
Set-out and centres
The screen is balanced across the available width so the first and last battens, intermediate gaps and opening margins read consistently.
Supports and fixing lines
Support positions and fixings follow the nominated system and project requirements while remaining visually controlled behind the finished battens.
Openings and custom cuts
Window lines and shaped openings are transferred across individual profiles so the complete screen resolves as one piece of architecture.
Edges and material junctions
Ends, corners and interfaces with cladding, masonry, glazing and cappings are coordinated so the screen finishes cleanly from every viewing angle.
04 / Where battens work
A facade layer with depth.
Aluminium battens can sit over glazing, between cladding volumes or around a feature opening. The screen changes with the viewing angle: from straight on it reads as a strong linear field; from the side, the profile depth and shadow become more pronounced.
- Architectural facade screens
- Window screening and feature surrounds
- Entry and upper-storey feature zones
- Custom openings and stepped batten ends
- Residential and builder-led projects

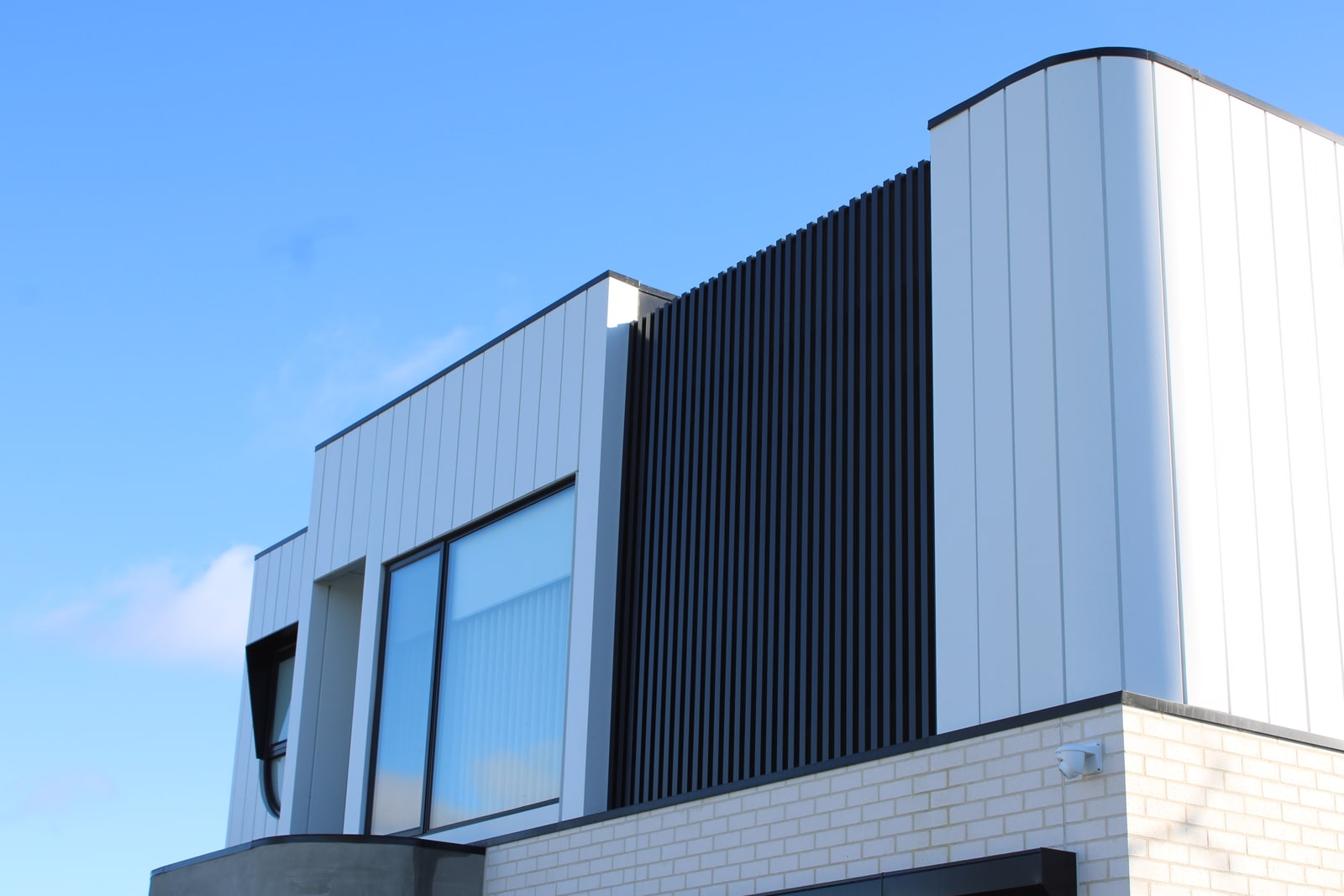

Rhythm changes with the view.
Close, oblique and full-elevation views reveal different parts of the workmanship: consistent lines, profile depth, clean ends and the way the screen sits beside other facade materials.

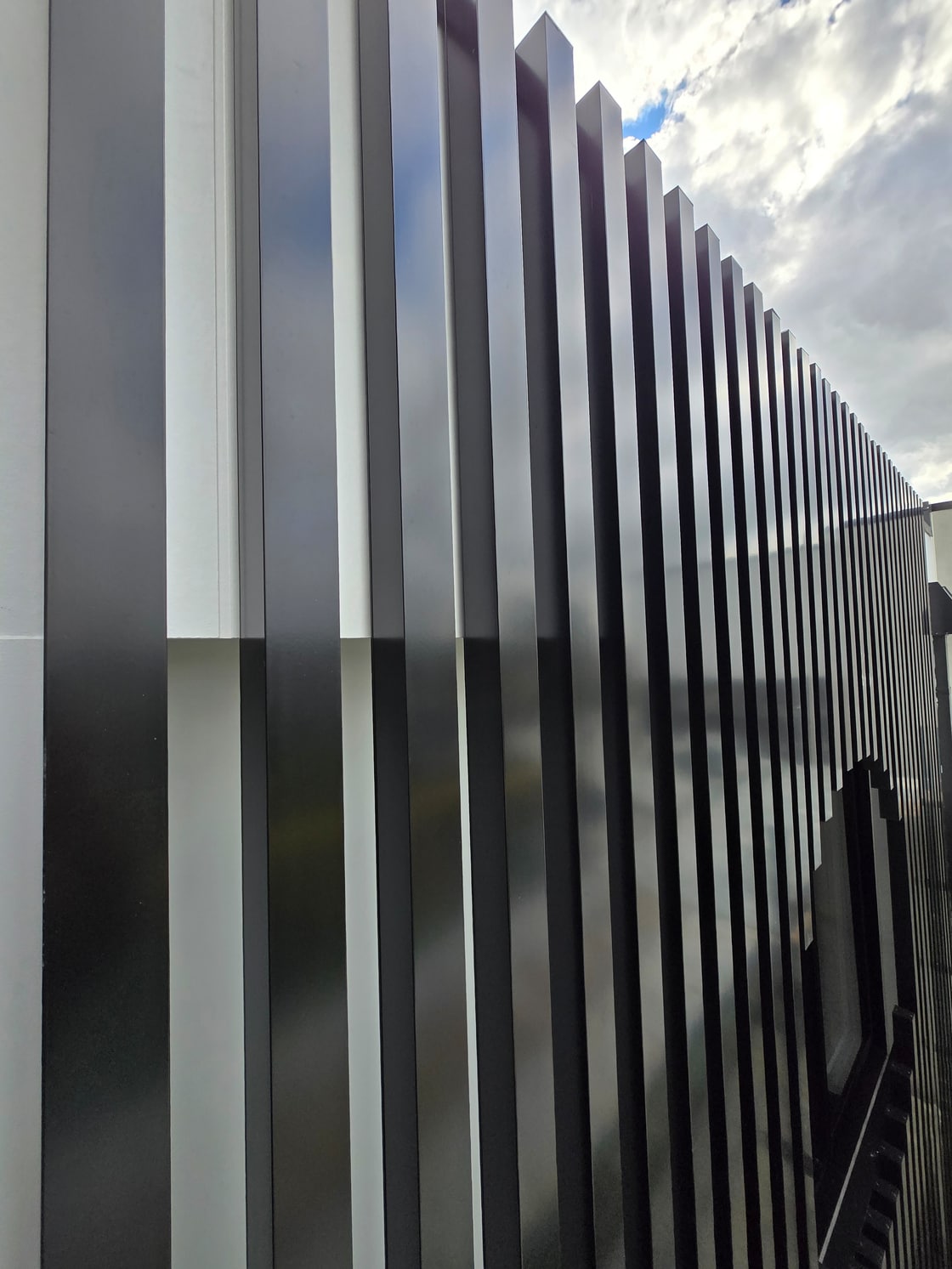

Depth appears between the lines.
From an angle, the repeated 3D profiles create a much stronger play of light and shadow than a flat facade finish.

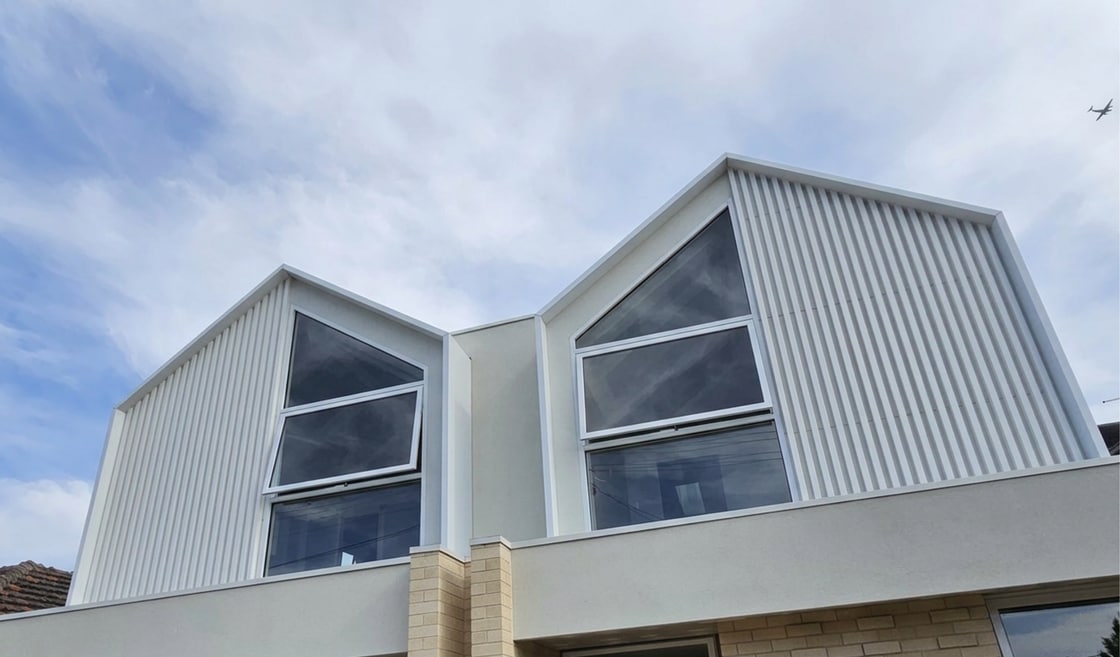

The same rhythm, a quieter result.
White battens frame the gable glazing and add texture while keeping the upper facade light and restrained.

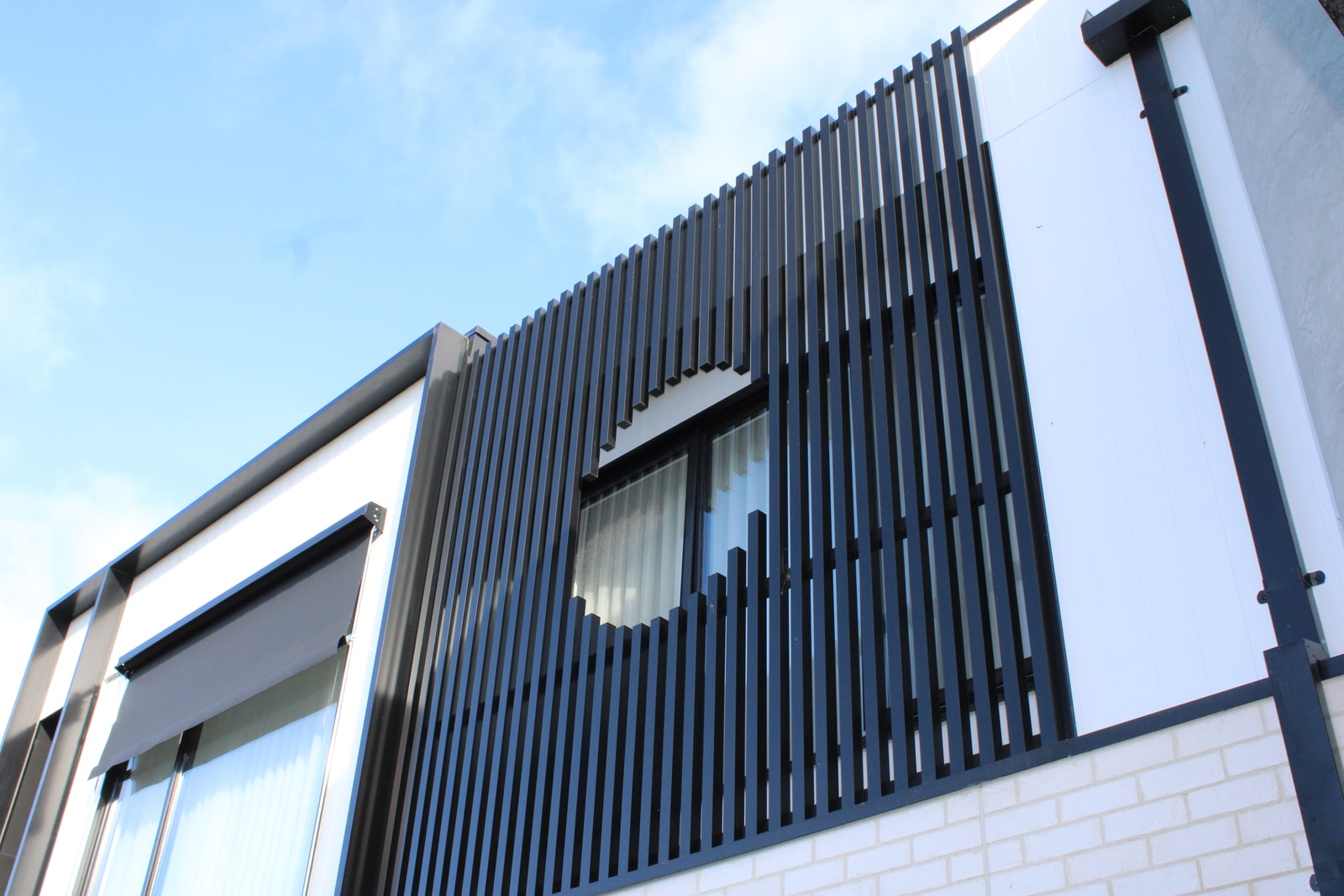

Many individual cuts, one clean curve.
The opening only reads correctly when each batten length is measured as part of the complete geometry.
A measured installation sequence.
- 01
Review the design
Plans, elevations, nominated profiles, screen limits and junction details are checked before set-out.
- 02
Confirm the real dimensions
Site measurements establish the final width, datums, openings and interfaces with surrounding finishes.
- 03
Set supports and spacing
Support lines and batten centres are coordinated with the specified system and the visual balance of the elevation.
- 04
Install and refine
Battens are aligned, openings are resolved and the completed screen is checked from the key viewing angles.
07 / Common questions
Aluminium batten screen FAQs.
What can aluminium battens be used for on a facade?
They can be detailed as architectural facade screens, window surrounds, feature zones, entry screens and linear accents. The profile, spacing, supports and fixing system need to suit the project design and current product requirements.
Can CLADSMAN install custom openings through a screen?
Yes. Where the project design allows, we can coordinate individual batten lengths to create shaped openings. The final geometry is set out from the drawings and confirmed against actual site dimensions.
Do the battens all need to be the same size and spacing?
No. Aluminium batten systems are available in different profile depths and can be set out at different centres. The selected product, engineering, span, mounting system and architectural intent determine the final arrangement.
Can battens provide privacy or shade?
Spacing and profile depth can influence visibility and solar exposure, but performance depends on the screen orientation, geometry and specified system. Any privacy, shading or compliance target should be resolved in the project design rather than assumed from appearance alone.
What should I send for an installation quote?
Send the site address, plans and elevations, nominated profile or material schedule, screen and opening details, access information and expected timing. Photos are useful where the screen needs to integrate with an existing facade.
08 / Start the conversation
Request an aluminium batten quote.
Send the plans, screen details and site location. We will come back with the next practical step for your installation.
